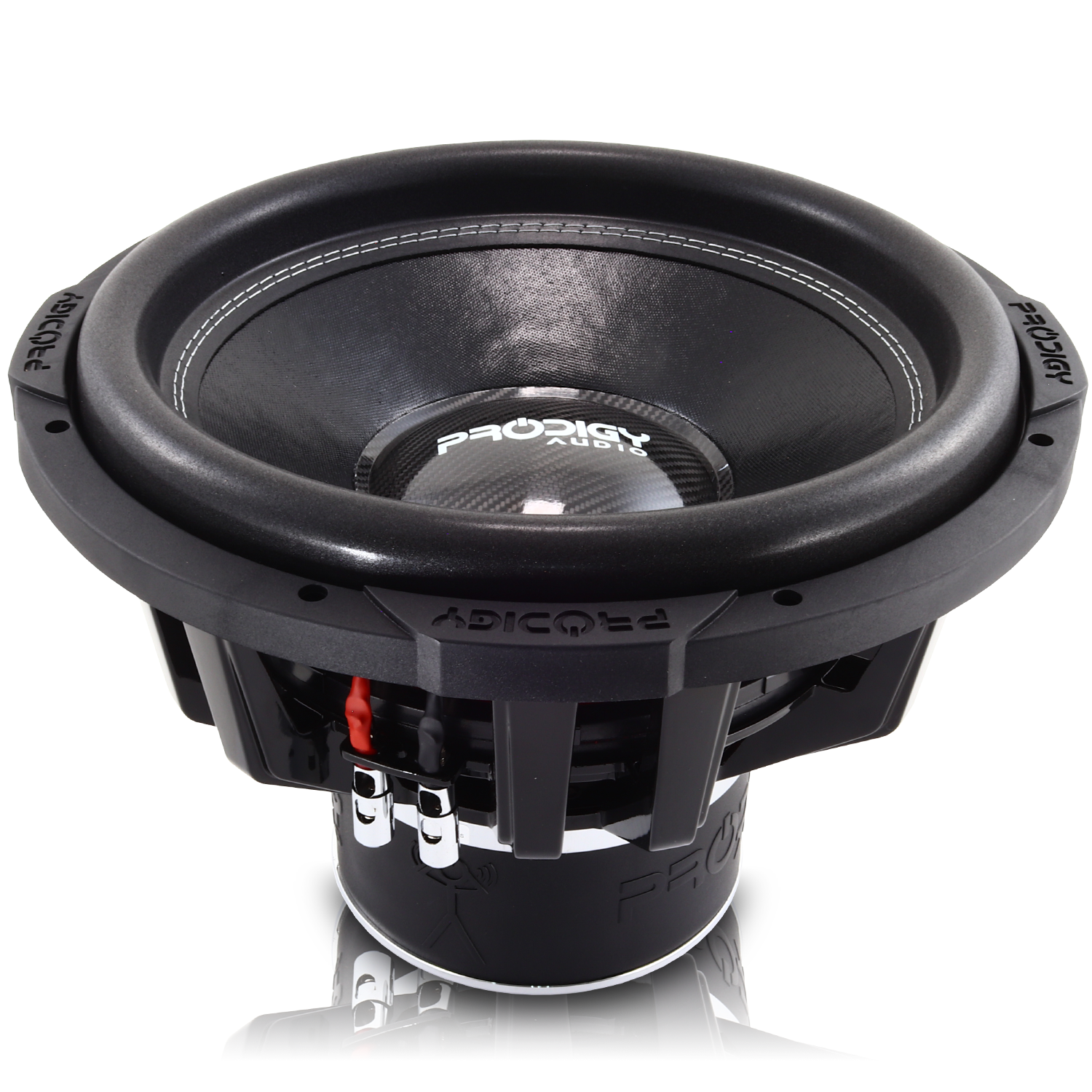

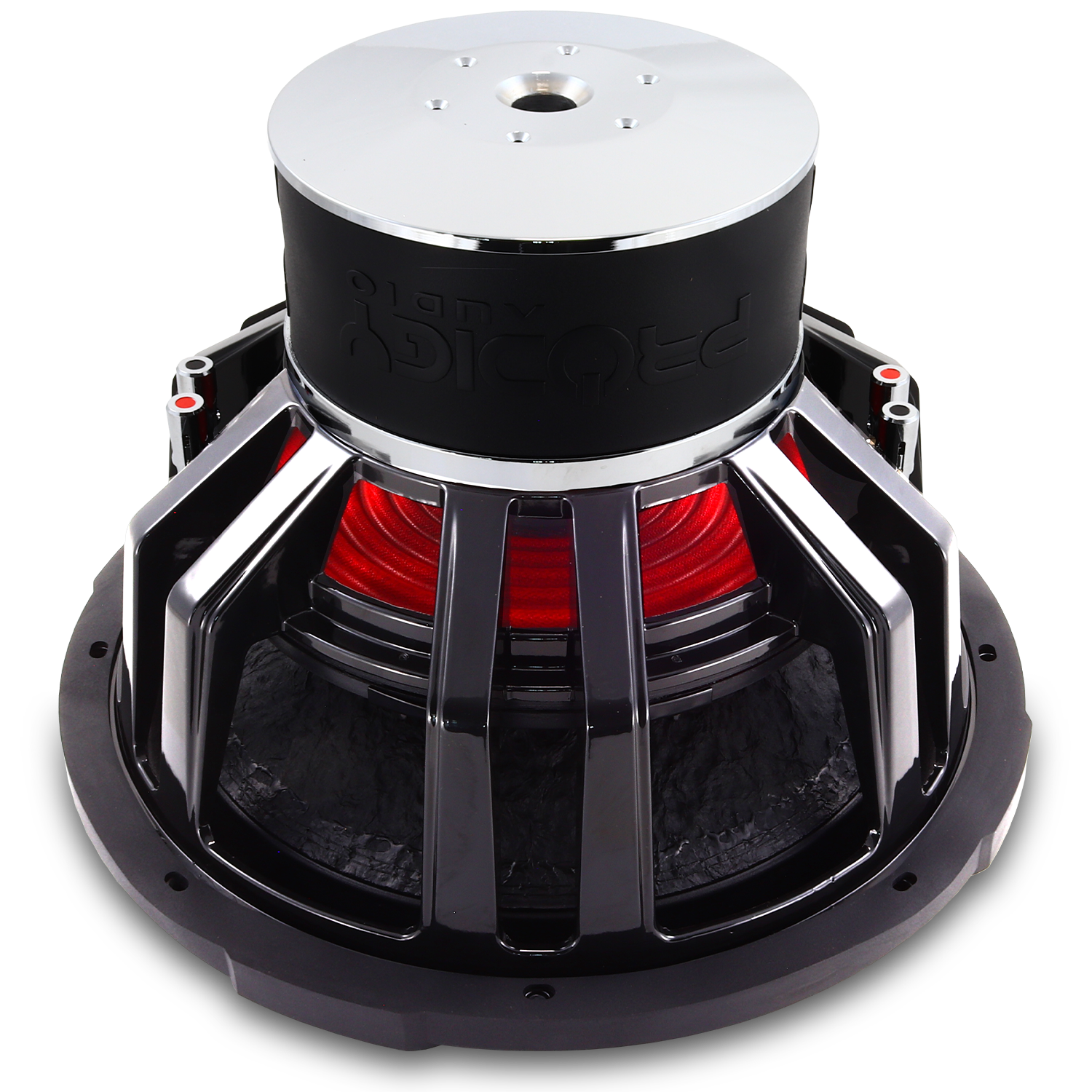

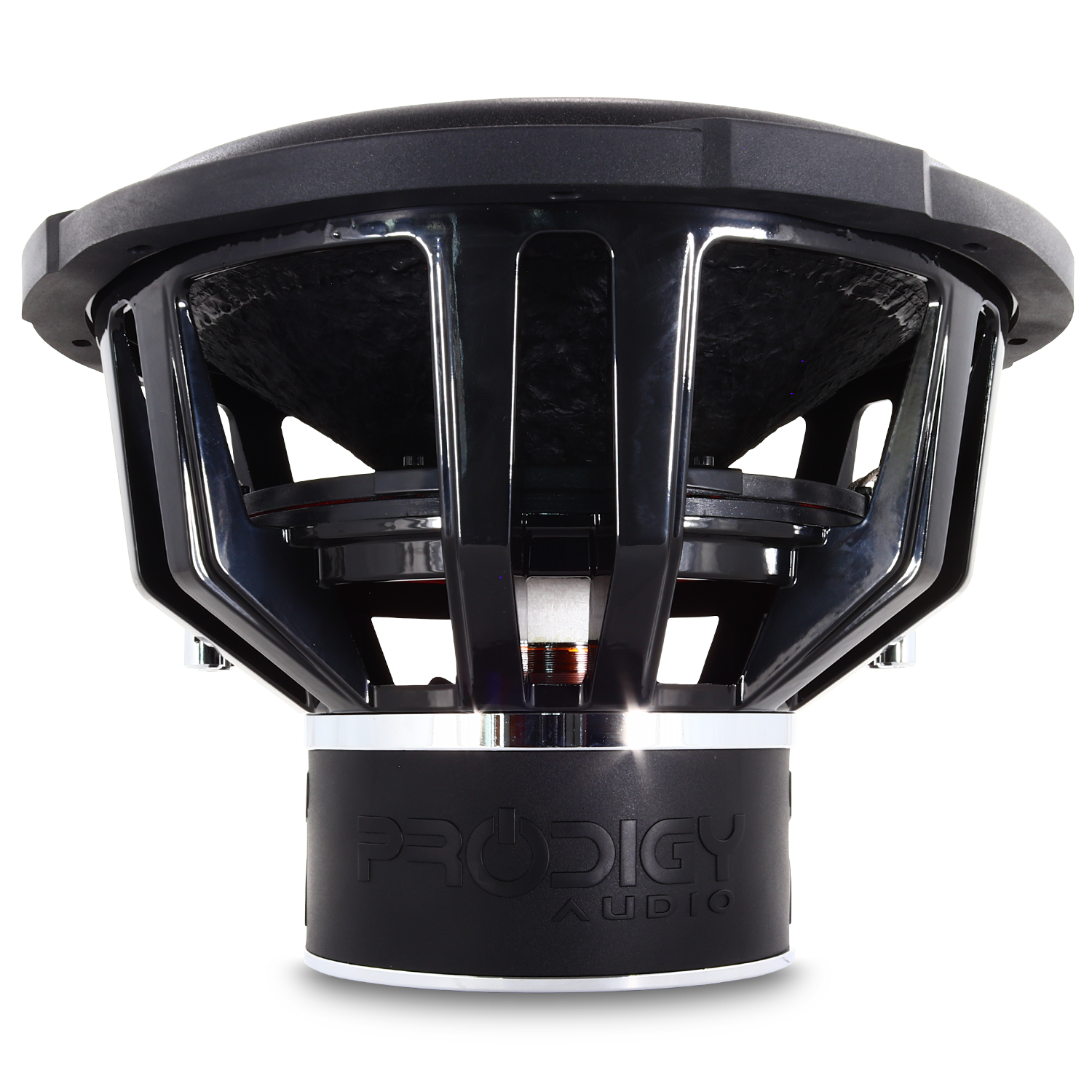

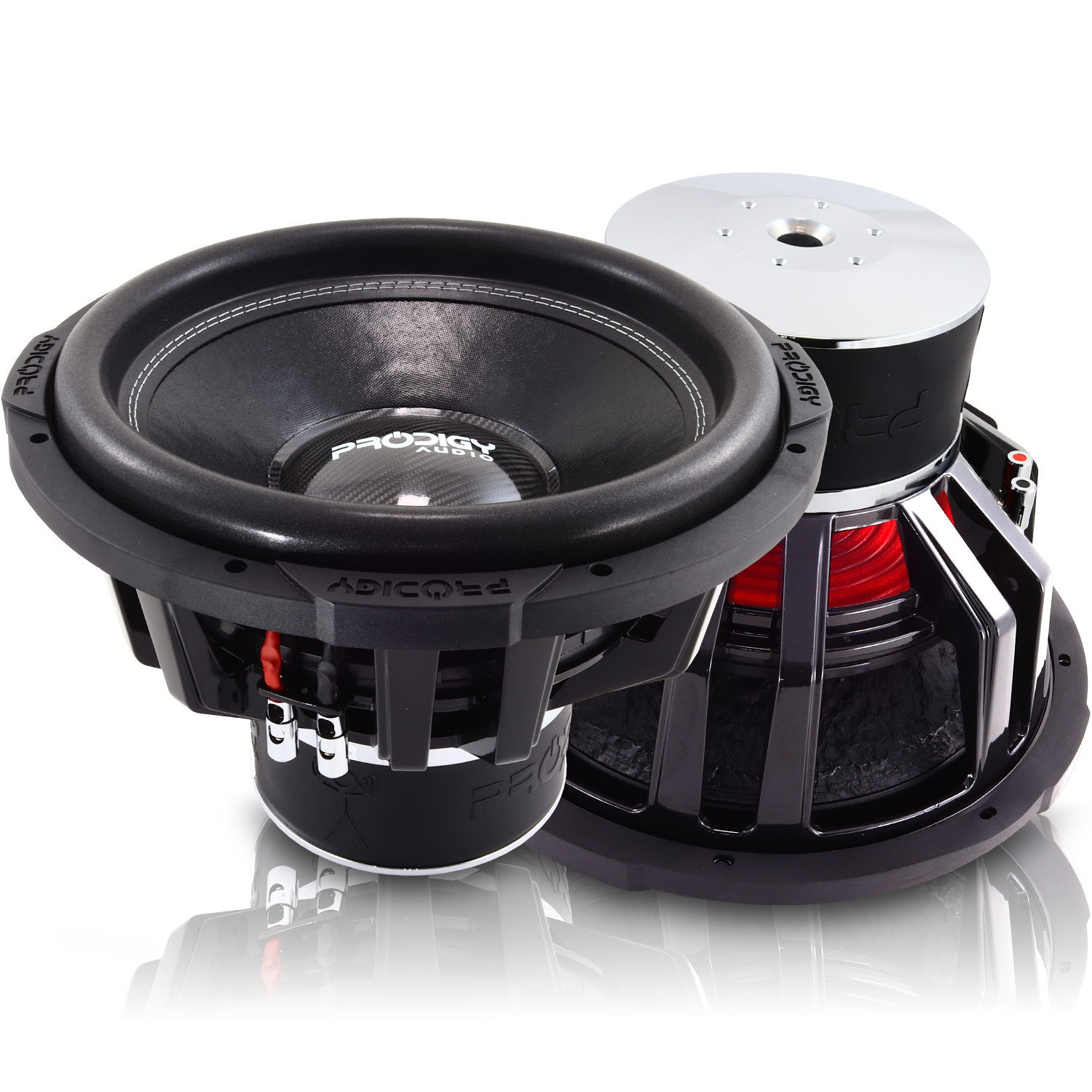

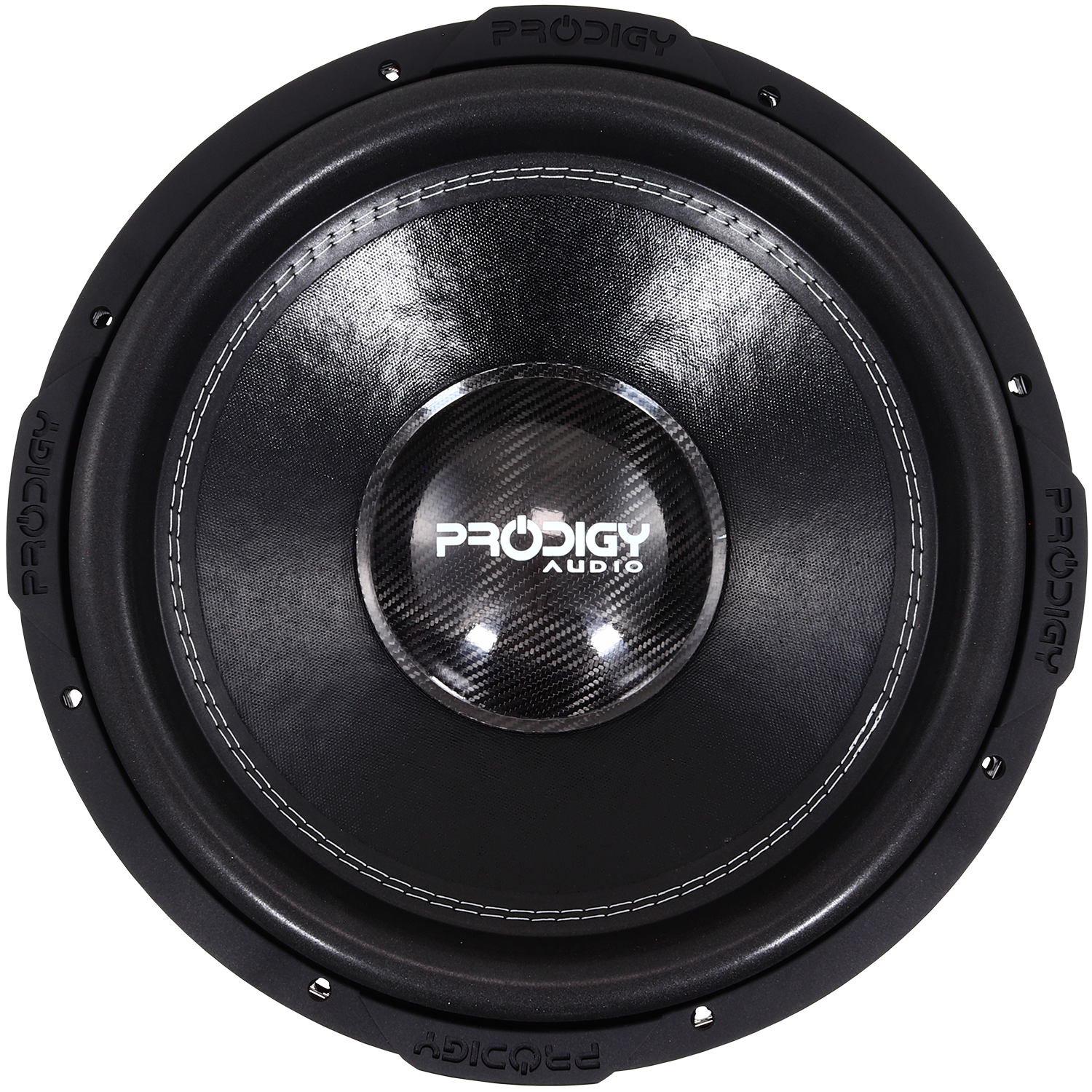

Product Description
The NB5 series (10", 12", & 15”) is a robust line up of 1000--1500 watt handling subwoofers. Starting with the motor design, we spent a lot of time optimizing the design to incorporate a large inner pole, upper and lower, Faraday shorting ring which helps to reduce any distortion caused by inductance throughout the movement range of the cone. We chose a 2.75” diameter coil that has a very long winding width, with the wire being made of flat aluminum. Overall, they have 27mm of excursion one way at 70% BL and have a 40mm of X-mech forward and 50mm downward x-mech clearance before soft parts crash into hard parts. The motor has 280 ounces of ferrite rings and utilizes a vented pole design with coil gap radial vents for moving heat quickly out of the gap. Mated to the motor is a heavy duty cast aluminum frame that serves as an excellent heat exchanger. As the motor gets hotter the mass of aluminum helps to dissipate the overall heat. Nomex spiders with heavy stitched in tinsel leads connect with the competition grade treated paper cone, and the heavy-duty foam surround that complete the make-up of this woofer.
Features:
- 27mm of x-max one way at 70% BL
- Product RMS Power 1500 watts
- Available Coil Options: D2/D4
- Vented magnetic gap
- Black Aluminum 2.75” voice coil for superior power handling
- High Temperature flat aluminum voice coil wire
- Large Aluminum ID Faraday Ring
- Chrome 4awg Push Terminals
- Stitched on Double Tinsel Leads
- Heavy Cast aluminum frame
- Extreme duty Nomex spiders
Specifications:
| NB5-15d2 | NB5-15d4 | |
| RE | 3.44 | 6.088 |
| FS | 35.6 | 34.93 |
| VAS | 43.548 | 47.197 |
| Qes | 0.534 | 0.593 |
| Qms | 5.283 | 5.595 |
| Qts | 0.485 | 0.536 |
| BL | 27.33 | 30.789 |
| Mms (g) | 422.32 | 417.888 |
| Cms | 41.623 | 44.651 |
| Sens | 88.22 | 88.965 |
| Xmax | 30 | 30 |
Cut Outs & Sizes
| Model | NB5-15 |
| Depth | 9.750" |
| Cutout | 14.000" |
| Overall Dia. | 15.625" |
| Displacement | 0.24 ft3 |
Enclosure Design
Warranty Information
2 Year Warranty
Prodigy Audio™ warrants product to be free from defects in material and workmanship under normal use for a period of 2 YEARS from date of original purchase with receipt. In all cases you must have the original receipt! Should service be necessary under this warranty for any reason due to manufacturing defect or malfunction during the warranty period, Prodigy Audio™ will repair (at its discretion) the defective merchandise at no charge.
This warranty is valid only for the ORIGINAL PURCHASER and is not extended to owners of the product after the original purchaser. Any applicable implied warranties are limited in duration to a period of the express warranty as provided herein beginning with the date of the original purchase at retail, and no warranties, whether express or implied, shall apply to this product thereafter. Some states do not allow limitations on implied warranties; therefore, these exclusions may not apply to you. This warranty gives you specific legal rights; however, you may have other rights that vary from state to state.
