Product Description
The NBM100.4 is a mini 4 channel amplifier that brings big sound in a small size. Boasting a 600 watt rms overall power, it’s the perfect choice for enhancing your system.
The NBM100.4 is engineered with band-passable crossovers X1 and X10, allowing you to run mids and highs on one channel and bass on another. You can also bi-amplifiy the four channels for a custom listening experience.
Specifications:
- 4ohm RMS Power: 100W x 4ch
- 2ohm RMS Power: 150W x 4ch
- 4ohm RMS Bridged Power: 300W - 350W x 2ch (Tested at 14.4V & 1% THD - RANGE)
- Frequency Response: 10Hz – 23.8KHz
- Signal to Noise Ratio: 93dB
- Damping Factor: 100
- Input Sensitivity: 6V – 0.2V

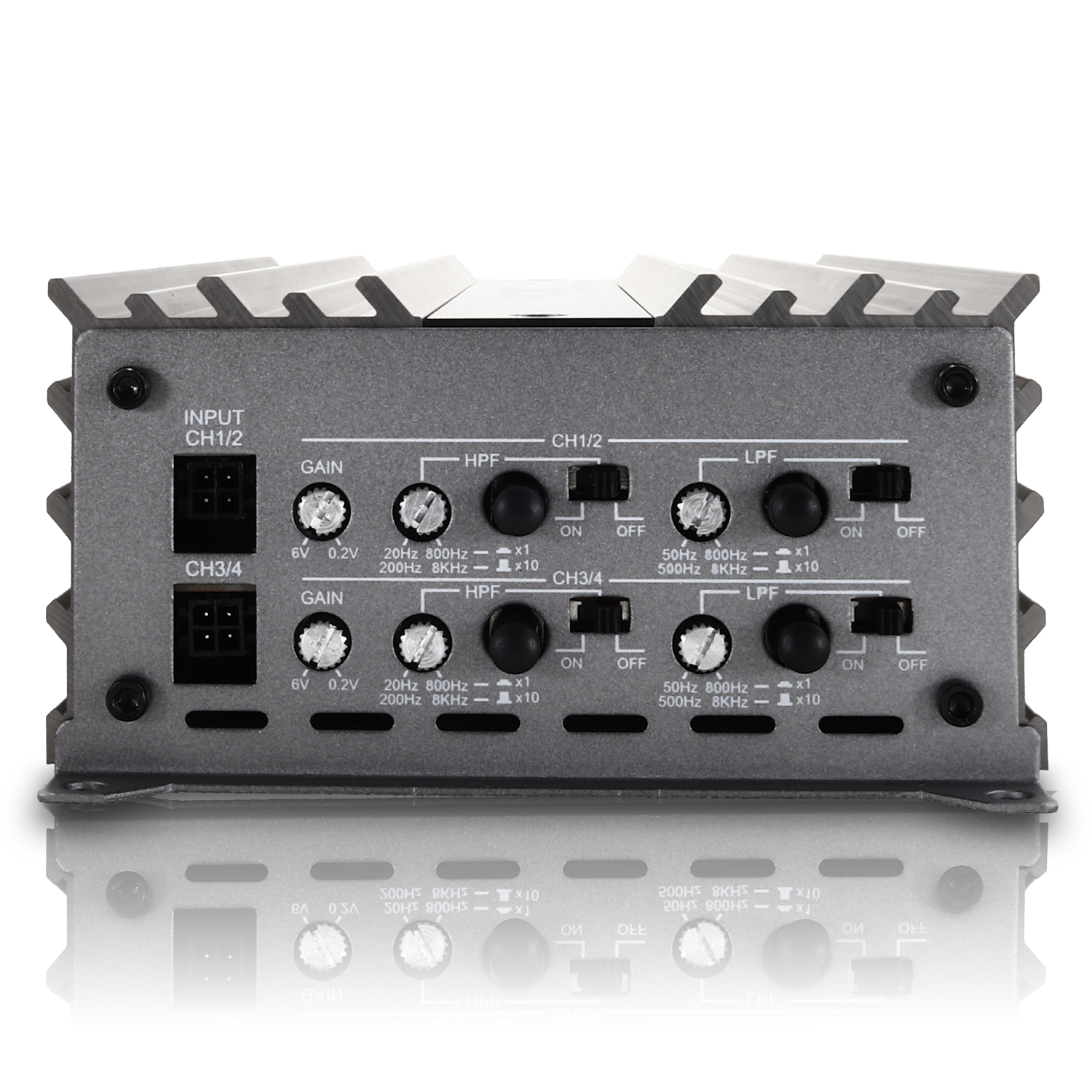

- CH1/2 High Pass Filter: 20Hz – 800Hz
- High Pass Multiply: x1, x10 (200Hz – 8KHz)
- Low Pass Filter: 50Hz – 800Hz
- Low Pass Multiply: x1, x10 (500Hz – 8KHz)
- Bandpass Capable
- CH3/4 High Pass Filter: 20Hz – 800Hz
- High Pass Multiply: x1, x10 (200Hz – 8KHz)
- Low Pass Filter: 50Hz – 800Hz
- Low Pass Multiply: x1, x10 (500Hz – 8KHz)
- Bandpass Capable

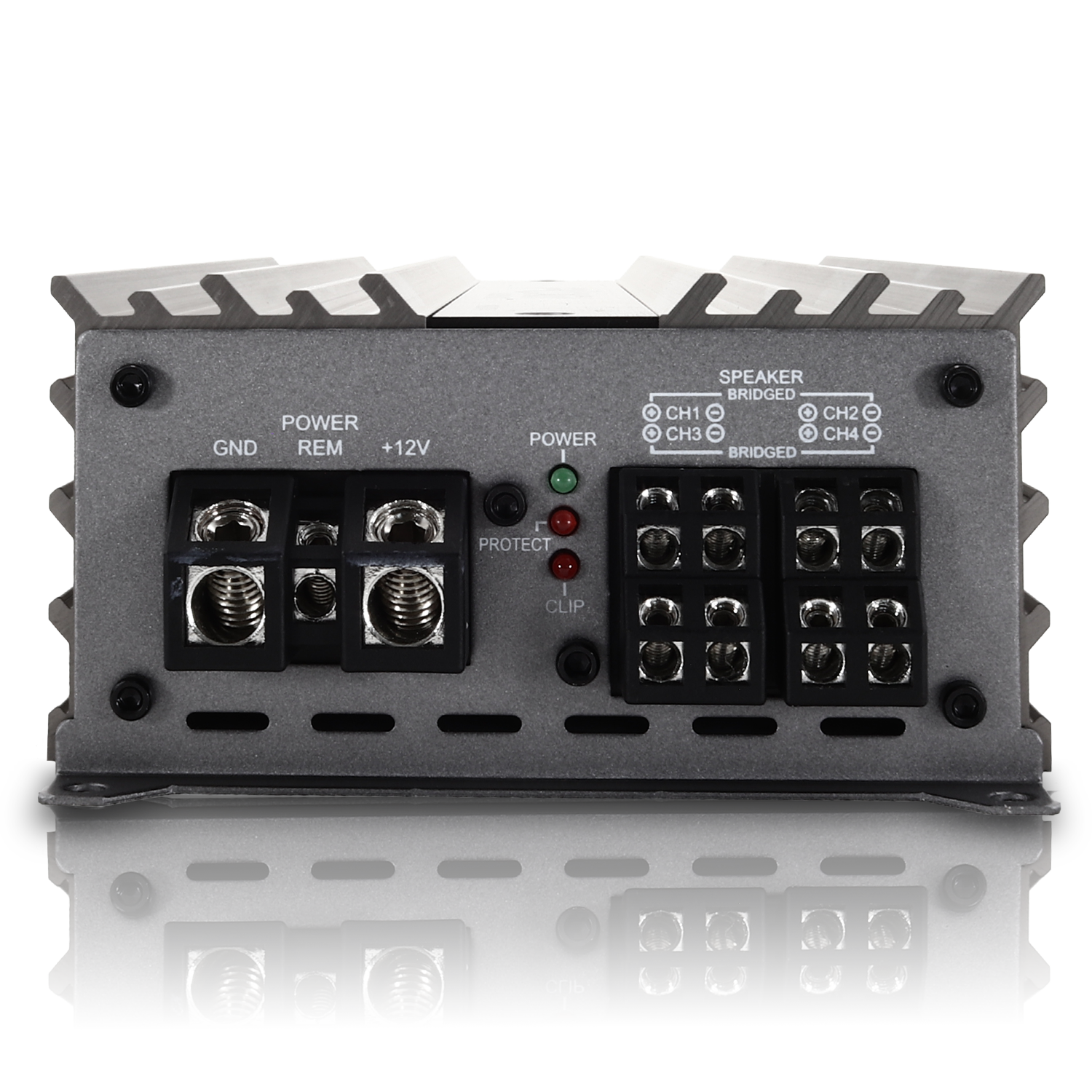

- Clipping Indicator
- Working Voltage: 9 to 15.5 Volts
- 4 GA Power & Ground Terminal
- 14GA Speaker Wire Terminal
Dimensions:
- Length: 220mm (8.66 inches)
- Width: 123.9mm (4.87 inches)
- Height: 54.3mm (2.13 inches)
